Vacuum Wand / Vacuum Pump

Vacuum Wand

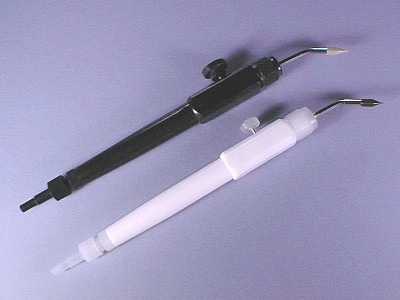

Vacuum Wand (Vacuum Pen, Vacuum Tweezers): Ideal for semiconductor die handling, jewelry making, medical/biological experiments, making models, etc with a large selection of interchangeable attachments. A vacuum pump connected to the vacuum wand body provides the suction power.
*US Patent 6176265B1, Japanese Patents 1698352/1885465

You can find the vacuum wand which meets your requirements on our vacuum wand search.

Vacuum wands for larger diameter semiconductor wafer handling

Do not touch the small hole on the wand body during operation.

Vacuum Pump FV-10-110
Vacuum Pump: Designed to minimise noise generation with adjustable vacuum pressures.
  • Designed to minimise noise generation
  • Adjustable Vacuum Pressure: -4kPa to -14kPa
  • Flow Rate: 2.7 l/min
  • Power Requirement: 100-120 VAC
  • Consumption Power: 5.0 W
  • Duty Cycle: Continuous
  • Life Expectancy > 8760 hours
  • Dimensions (D x W x H): 155 x 72 x 54 mm
  • Weight: 600 g
  • 240VAC version (FV-10-240) available
  • Static-Dissipative Grounding Kit (Accessory)
  • ESD Safe Tubing (Accessory)
  • Inlet Filter (Accessory)

HEPA vacuum pumps for larger diameter semiconductor wafer handling

Vacuum Pump FV-W-110 for DuoVac
The blowing function ensures secure release of light weight objects.
Vacuum Pump for DuoVac: The blowing function ensures secure release of light weight objects.
  • Built in inlet and outlet HEPA filters**
  • The filter windows***
  • Nylon body for static protection
  • Suction Power: -30kPa (fixed)
  • Adjustable Blowing Power: 0-10kPa
  • Flow Rate: 1.2 l/min
  • Power Requirement: 100-120 VAC
  • Consumption Power: 5.0 W
  • Duty Cycle: Continuous
  • Life Expectancy > 8760 hours
  • Dimensions (D x W x H): 137 x 88 x 85 mm
  • Weight: 850 g
  • 240VAC version (FV-W-240) available
  • PVC Double Tubing (Does not come with the pump)
  • HEPA Filter Kit (Replacement Part)
**HEPA filters trap 99.97% of all particles down to 0.3 microns.
***Let you know when to change HEPA filters
This pump works only with the Normally Open with Blow valve.

Do not let the pump inhale dust or fluid.

Specifications are subject to change without notice.
