Conductive Nylon Nozzle Vacuum Wand

Holds a delicate miniature object securely without scratching
Ensures reliable suction of an object
Conductive Nylon Nozzle
Ideal for:
- Jewellery Making
- Die / Small Diameter Wafer Handling
- Camera / Watch Repair
- Computer / Model Assembly
- Picking Up Contact Lenses

Item	Valve Type	Body Material	Body	Nozzle
C001-27-X	NC	Conductive Nylon	C001	27-X
C002-27-X	NO	Conductive Nylon	C002	27-X
C003-27-X	NO+SW	Conductive Nylon	C003	27-X
F001-27-X	NC	Teflon(R)	F001	27-X
F002-27-X	NO	Teflon(R)	F002	27-X
F003-27-X	NO+SW	Teflon(R)	F003	27-X
F007-27-X	NO+Blow	Teflon(R)	F007*	27-X

*F007 works only with FV-W-110/240 and 820.

Please specify X, the inner diameter of the nozzle, then order the body and the tip separately.

X = 0.3, 0.5, 0.7, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0mm

e.g. C001 and 27-0.3

The outer diameter of the nozzle

X	0.3	0.5	0.7	1.0	1.2	1.5	2.0	2.5	3.0
OD	0.7	0.9	1.1	1.4	1.6	1.9	2.4	2.9	3.4

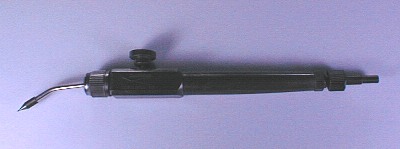

C001/2/3-27-X

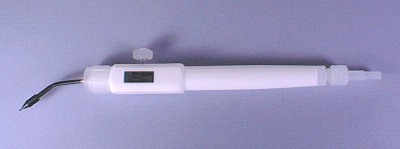

F001/2/3/7-27-X

Accessories / Parts
ESD Safe Tubing Static Dissipative Grounding Kit Wand Stand Replacement Parts Component Parts List for C series Component Parts List for F series

Click on the photo to download the drawing.

Vacuum Wands for larger diameter semiconductor wafer handling

Please contact our distributor for more information.
