Stainless Steel Nozzle Vacuum Wand

Item Valve Type Body Material Body Nozzle
C001-31-X NC Conductive Nylon C001 31-X
C002-31-X NO Conductive Nylon C002 31-X
C003-31-X NO+SW Conductive Nylon C003 31-X
F001-31-X NC Teflon(R) F001 31-X
F002-31-X NO Teflon(R) F002 31-X
F003-31-X NO+SW Teflon(R) F003 31-X
F007-31-X NO+Blow Teflon(R) F007* 31-X
*F007 works only with FV-W-110/240 and 820.
Please specify X, the inner diameter of the nozzle, then order the body and the tip separately.
X = 0.1, 0.7, 1.0, 1.2, 2.5, 3.0mm
e.g. C001 and 31-0.1

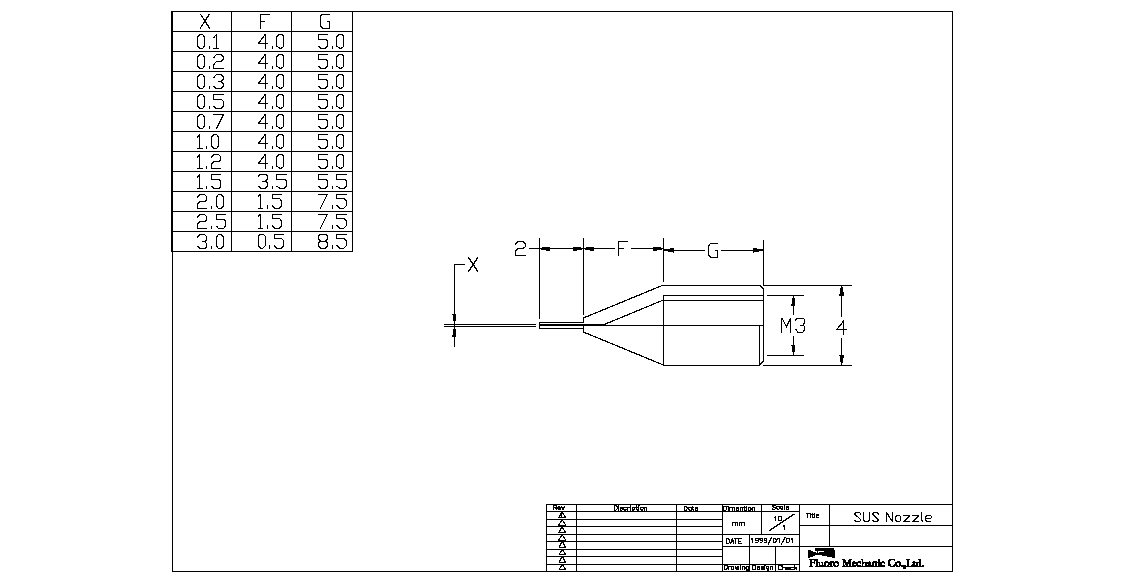

The outer diameter of the nozzle

X 0.1 0.7 1.0 1.2 2.5 3.0
OD 0.3 1.1 1.3 1.6 2.9 3.5

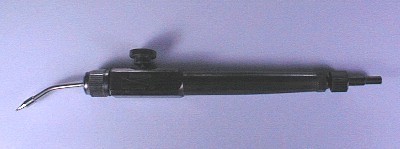

C001/2/3-31-X
Stainless Steel Nozzle Conductive Nylon Vacuum Wand

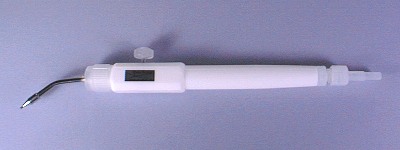

F001/2/3/7-31-X
Stainless Steel Nozzle Teflon Vacuum Wand

Accessories / Parts

Click on the photo to download the drawing.

Vacuum Wands for larger diameter semiconductor wafer handling

Please contact our distributor for more information.
