Silicone Rubber Cup Vacuum Wand

Holds a delicate miniature object securely without scratching
Ensures reliable suction of an object
Silicone Rubber Cup
Ideal for:
- Jewellery Making
- Die / Small Diameter Wafer Handling
- Camera / Watch Repair
- Computer / Model Assembly
- Picking Up Contact Lenses

Item	Valve Type	Body Material	Body	Cup
C001-41-X	NC	Conductive Nylon	C001	41-X
C002-41-X	NO	Conductive Nylon	C002	41-X
C003-41-X	NO+SW	Conductive Nylon	C003	41-X
F001-41-X	NC	Teflon(R)	F001	41-X
F002-41-X	NO	Teflon(R)	F002	41-X
F003-41-X	NO+SW	Teflon(R)	F003	41-X
F007-41-X	NO+Blow	Teflon(R)	F007*	41-X

*F007 works only with FV-W-110/240 and 820.

Please specify X, the diameter of the cup, then order the body and the tip separately.

X = 2.5, 3.0, 3.5, 5.0, 8.0, 11.0, 15.0mm

e.g. C001 and 41-2.5

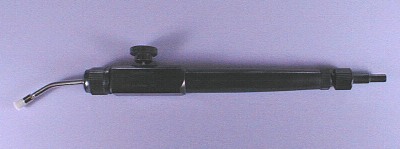

C001/2/3-41-X

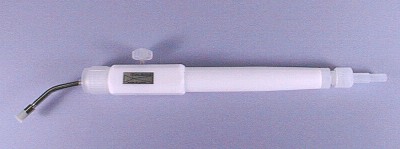

F001/2/3/7-41-X

Accessories / Parts
ESD Safe Tubing Static Dissipative Grounding Kit Wand Stand Replacement Parts Component Parts List for C series Component Parts List for F series

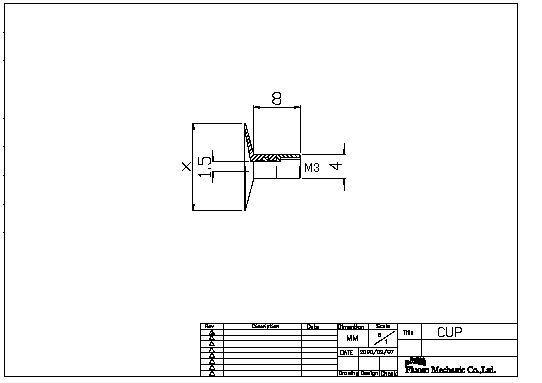

Click on the photo to download the drawing.

Vacuum Wands for larger diameter semiconductor wafer handling

Please contact our distributor for more information.
