Conductive PEEK Nozzle Vacuum Wand

Holds a delicate miniature object securely without scratching
Ensures reliable suction of an object
Conductive PEEK Nozzle
Ideal for:
- Jewellery Making
- Die / Small Diameter Wafer Handling
- Camera / Watch Repair
- Computer / Model Assembly
- Picking Up Contact Lenses

Item	Valve Type	Body Material	Body	Nozzle
C001-25-X	NC	Conductive Nylon	C001	25-X
C002-25-X	NO	Conductive Nylon	C002	25-X
C003-25-X	NO+SW	Conductive Nylon	C003	25-X
F001-25-X	NC	Teflon(R)	F001	25-X
F002-25-X	NO	Teflon(R)	F002	25-X
F003-25-X	NO+SW	Teflon(R)	F003	25-X
F007-25-X	NO+Blow	Teflon(R)	F007*	25-X

*F007 works only with FV-W-110/240 and 820.

Please specify X, the inner diameter of the nozzle, then order the body and the tip separately.

X = 0.1, 0.2mm

e.g. C001 and 25-0.1

The outer diameter of the nozzle

X	0.1	0.2
OD	0.4	0.5

X < 0.1mm available X > 0.2mm available

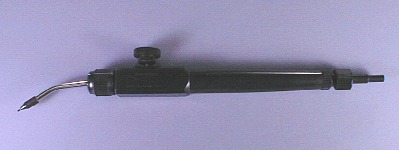

C001/2/3-25-X

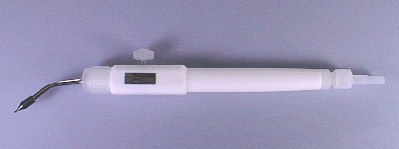

F001/2/3/7-25-X

Accessories / Parts
ESD Safe Tubing Static Dissipative Grounding Kit Wand Stand Replacement Parts Component Parts List for C series Component Parts List for F series

Click on the photo to download the drawing.

Vacuum Wands for larger diameter semiconductor wafer handling

Please contact our distributor for more information.
